Architect Center

Details & Drawings

Our complete standard detail library — dimensioned, reviewed, and ready to drop into your set. Every detail is issued as a free PDF download, current to the latest revision.

18 Shop Drawings — Live Download 101 Standard Details Free PDF Downloads 48-Hour Turnaround
Live Downloads

System Shop Drawings

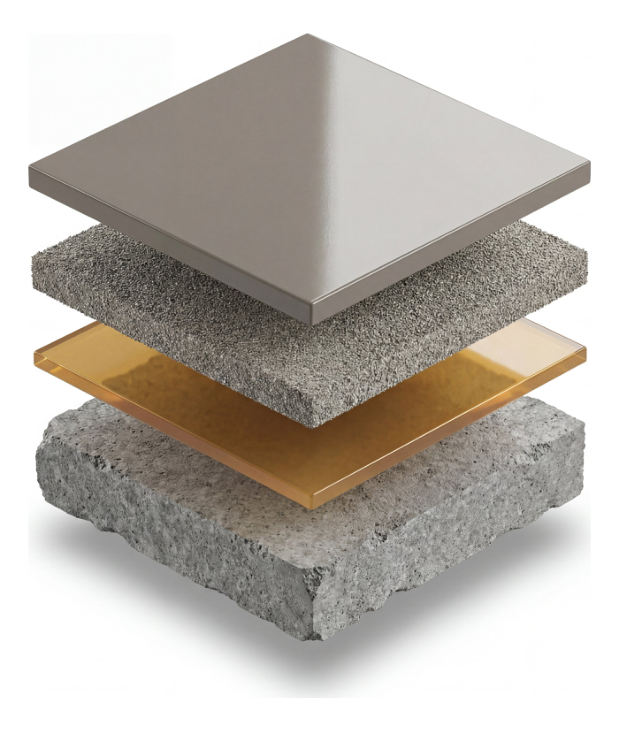

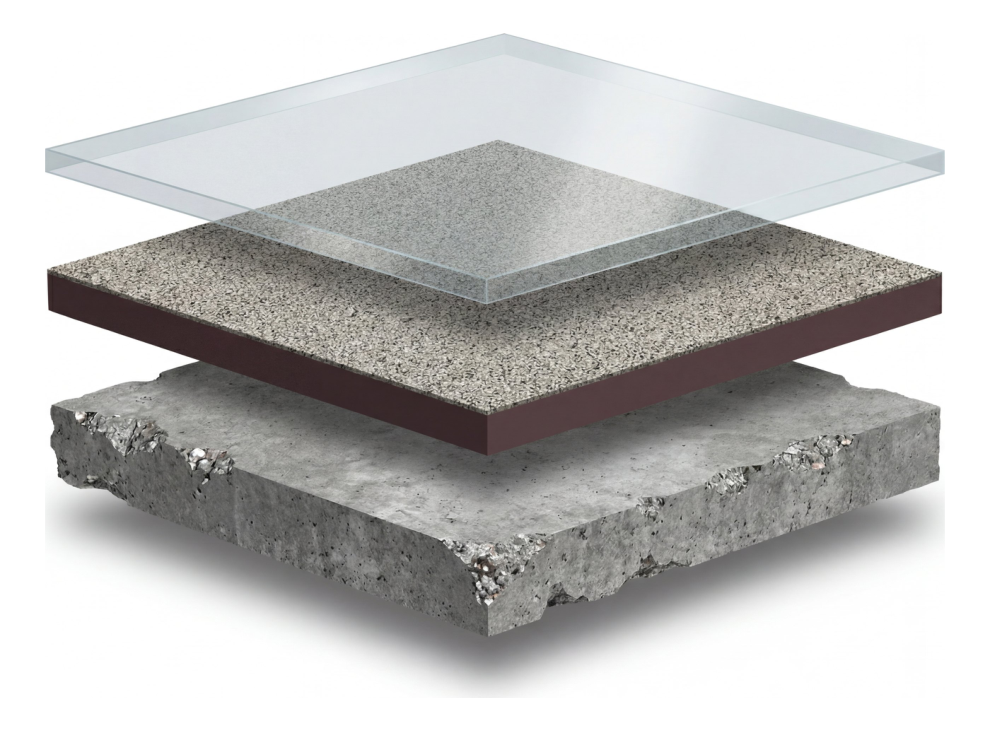

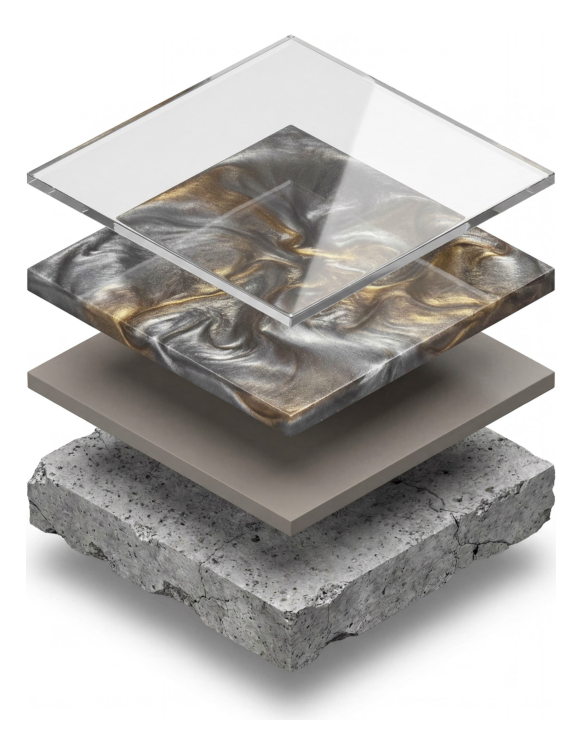

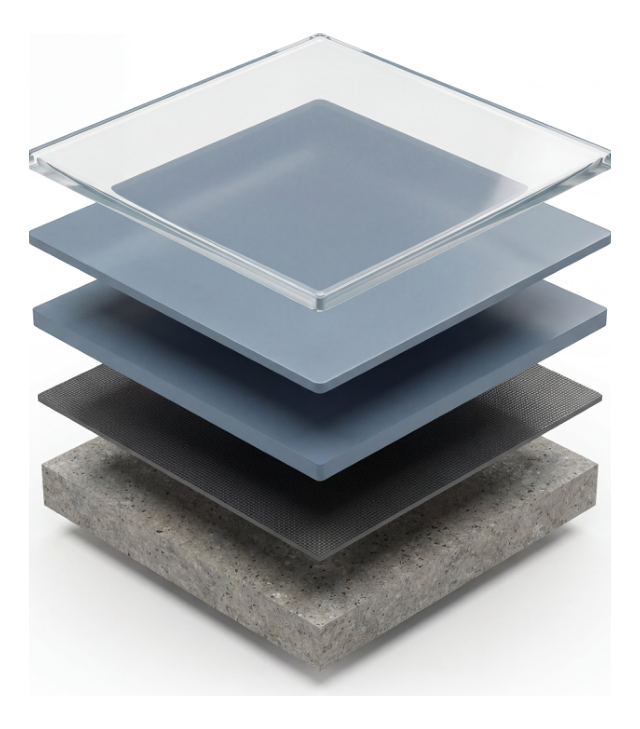

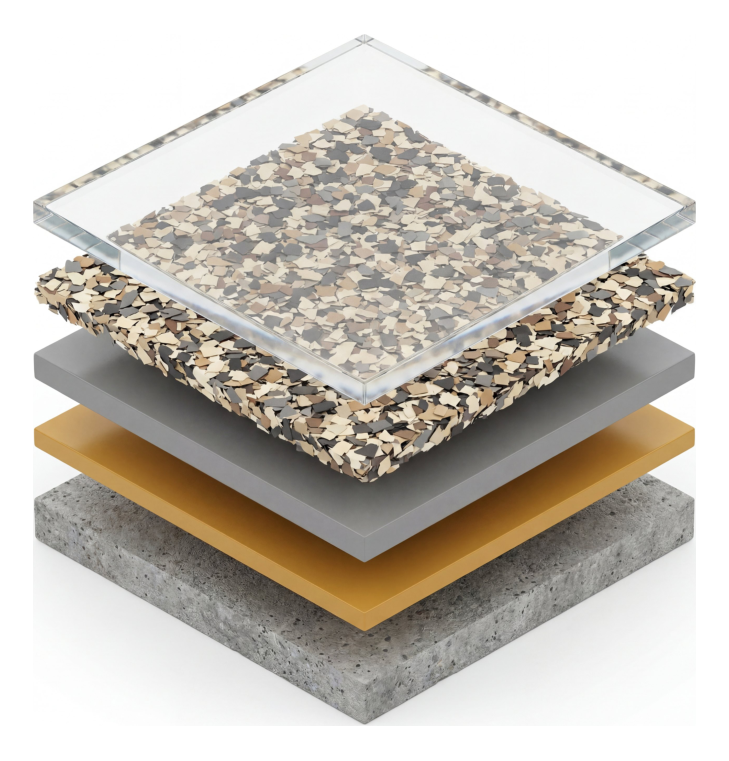

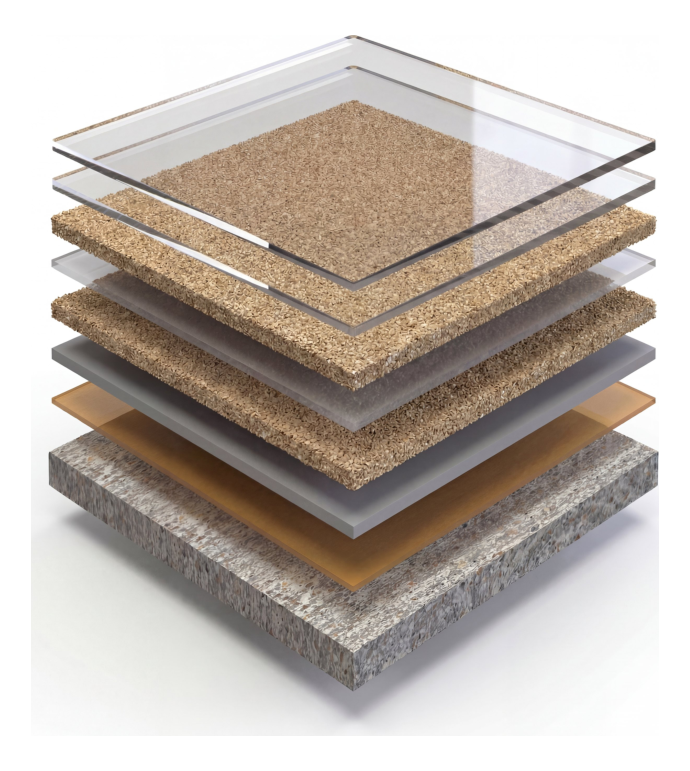

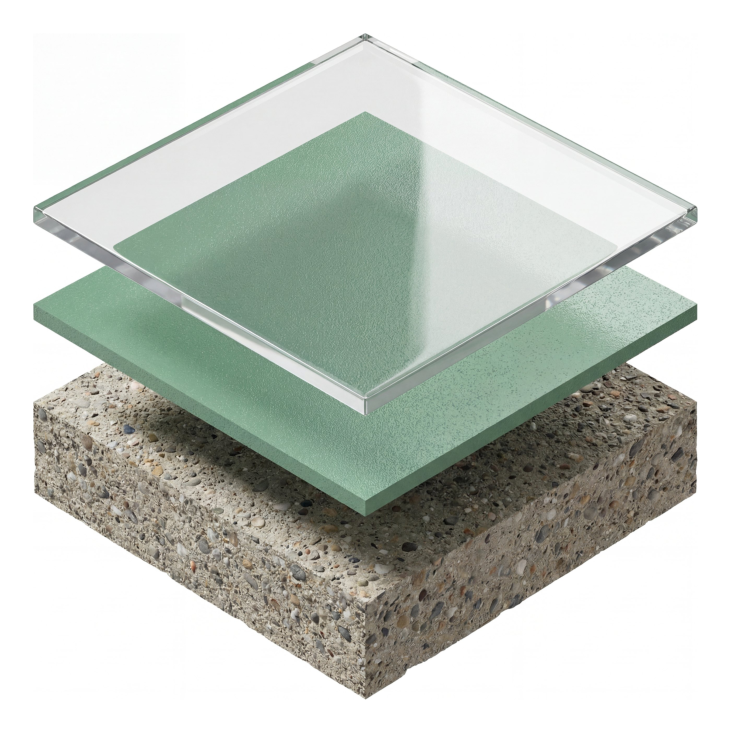

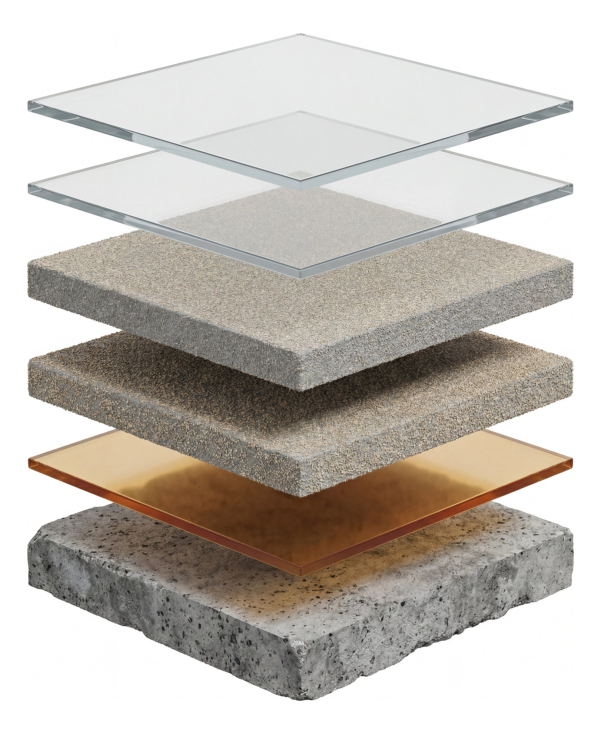

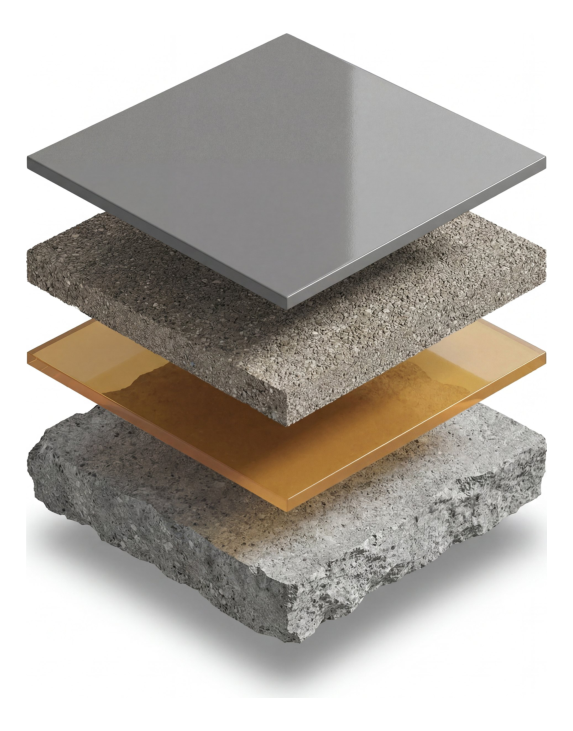

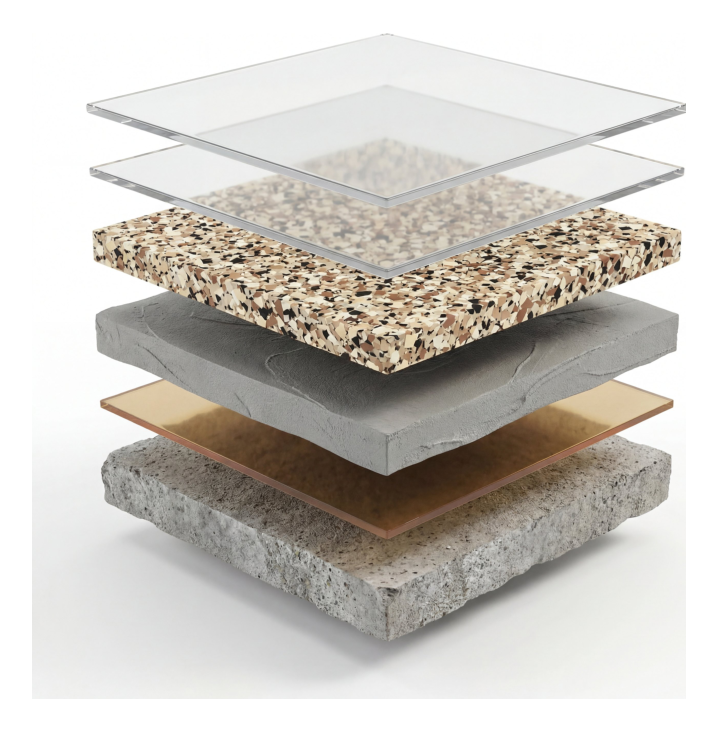

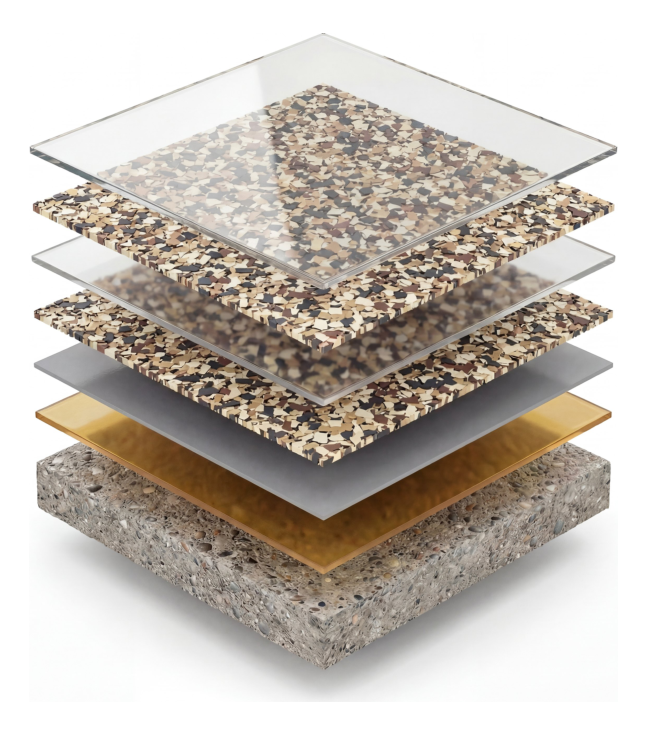

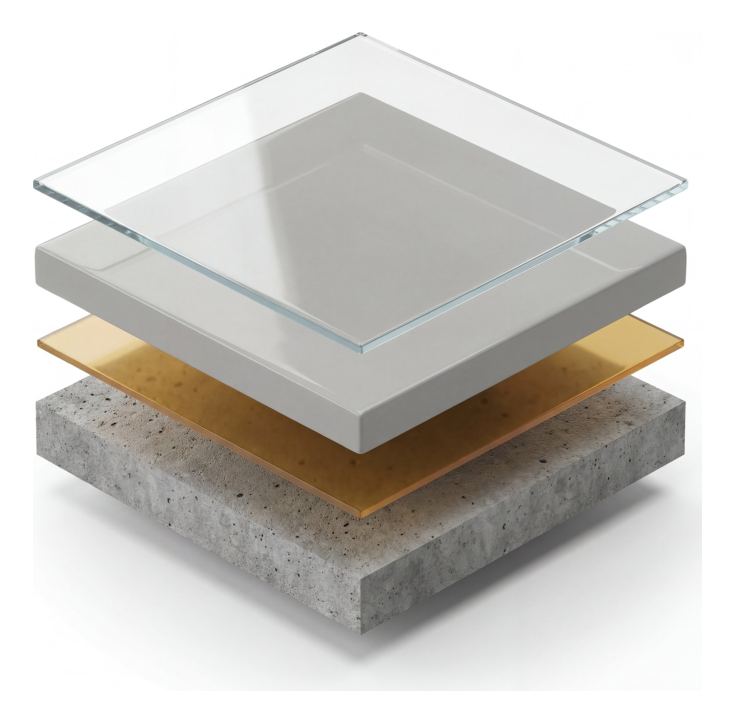

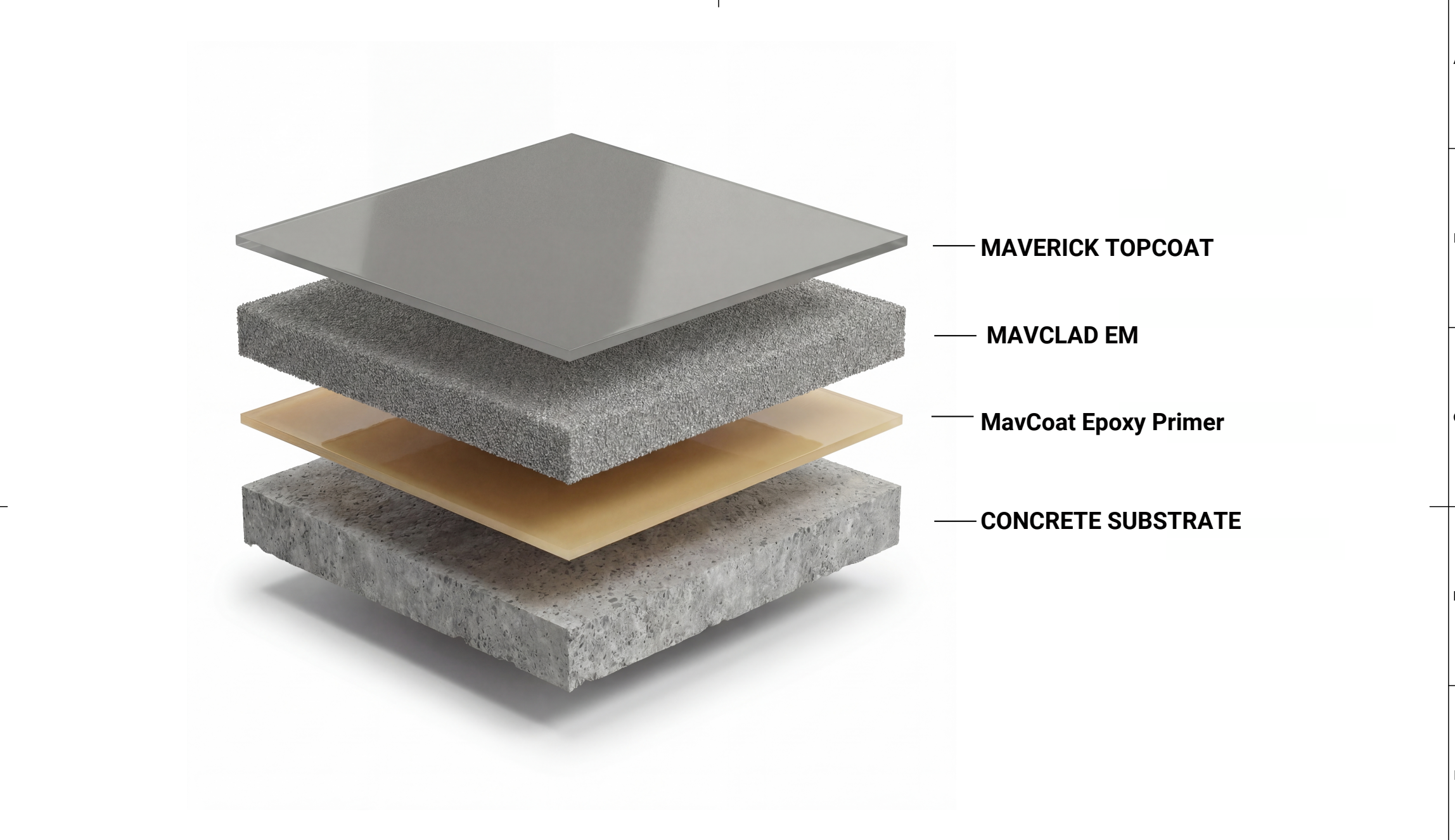

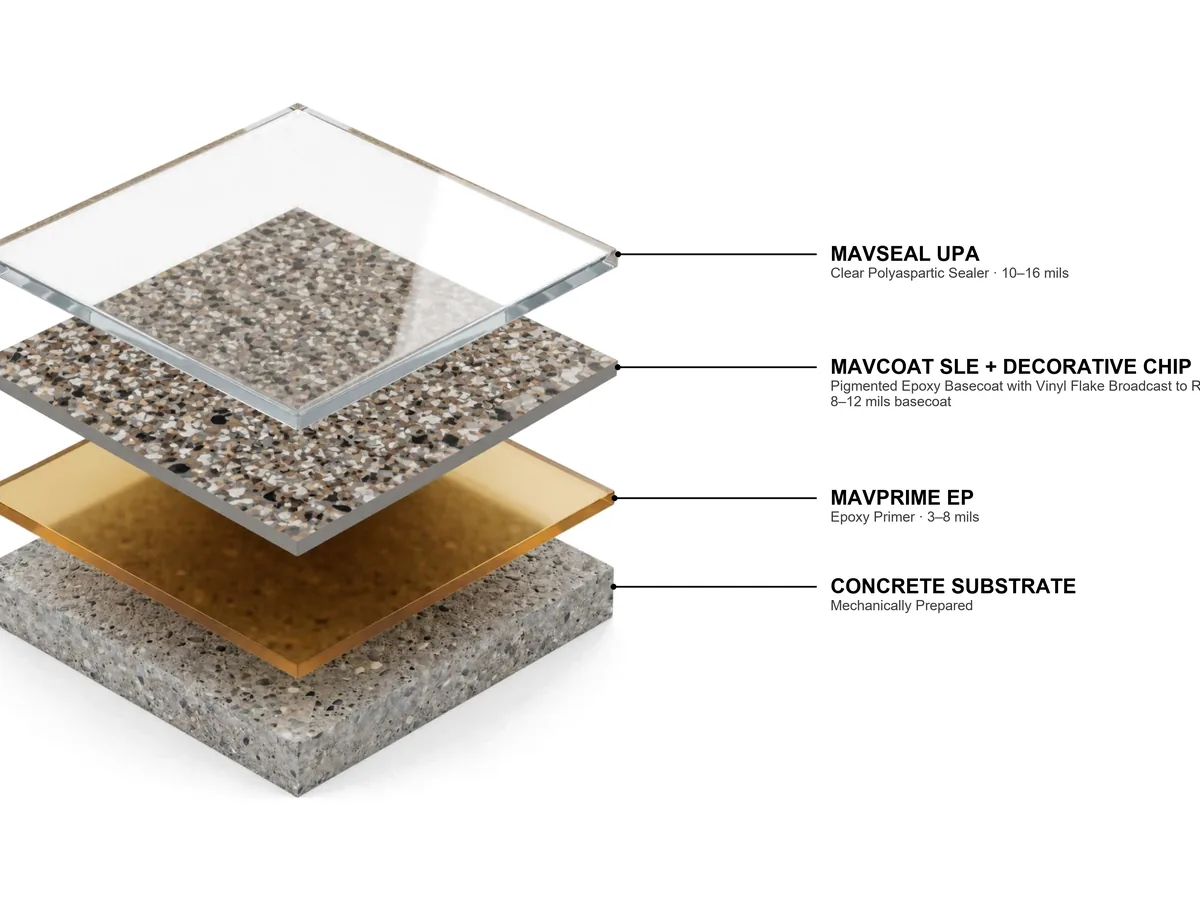

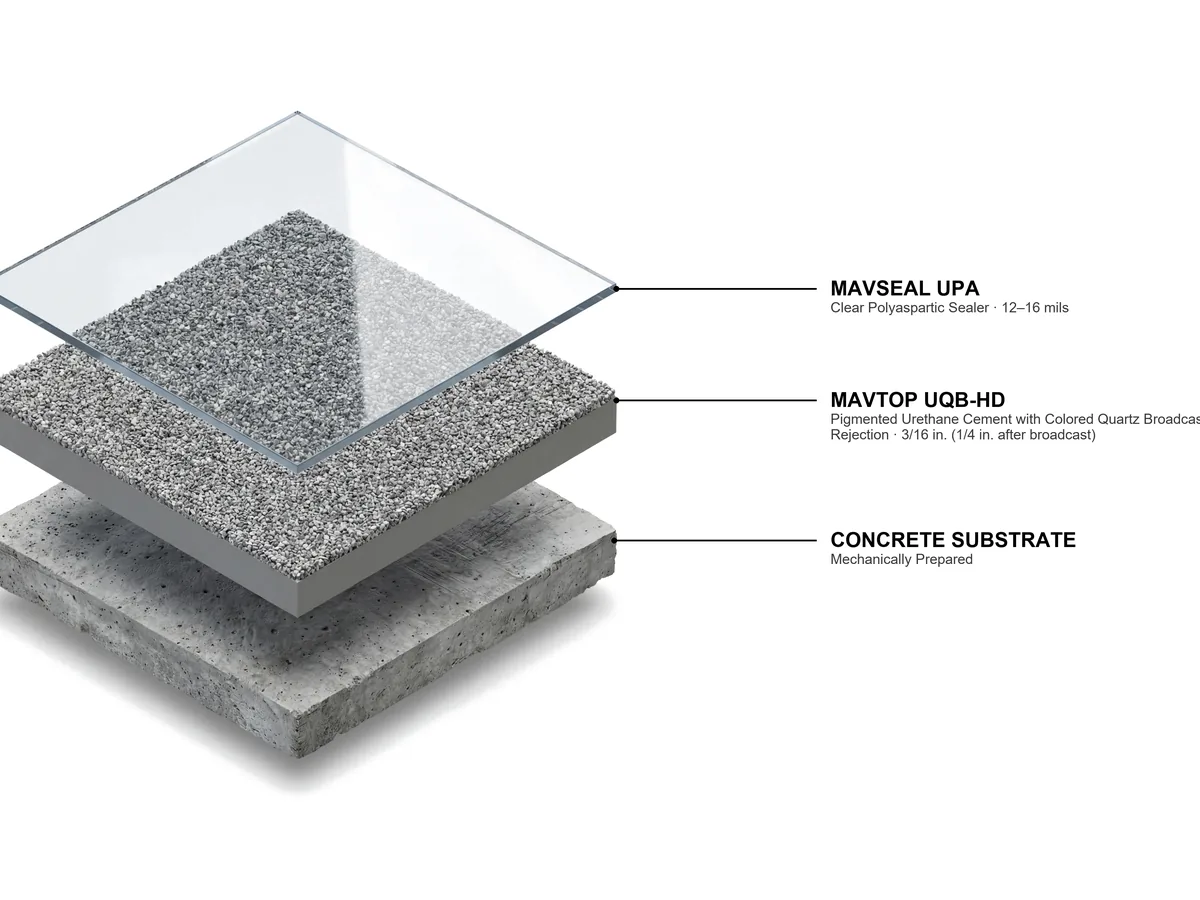

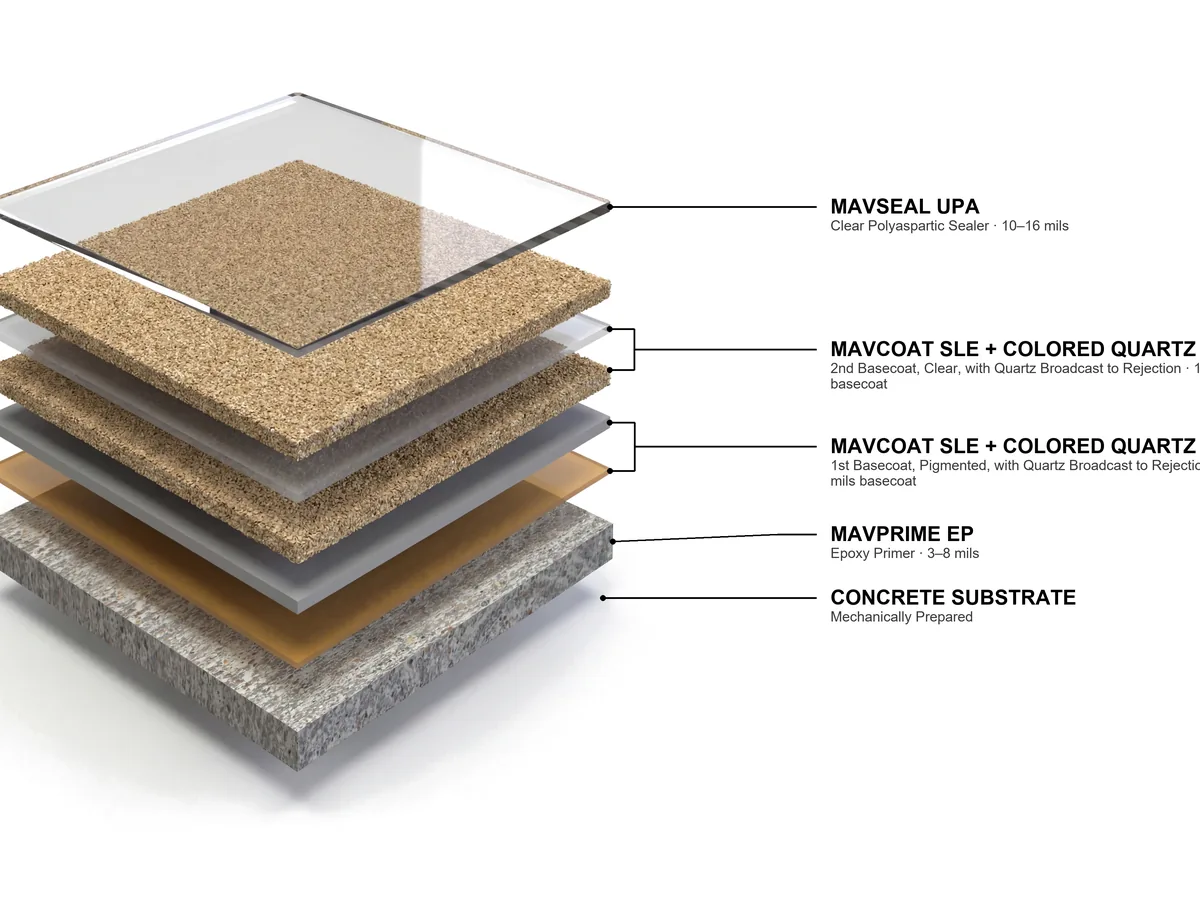

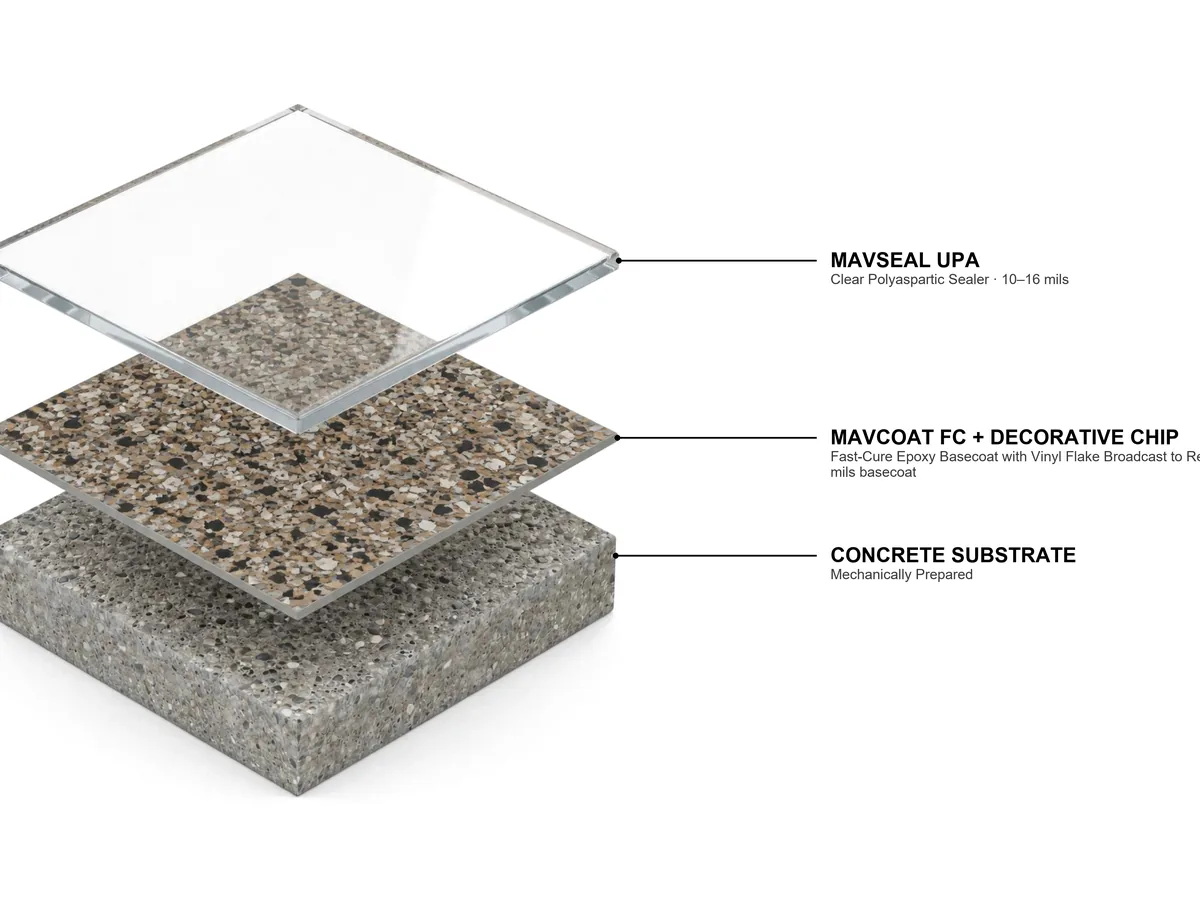

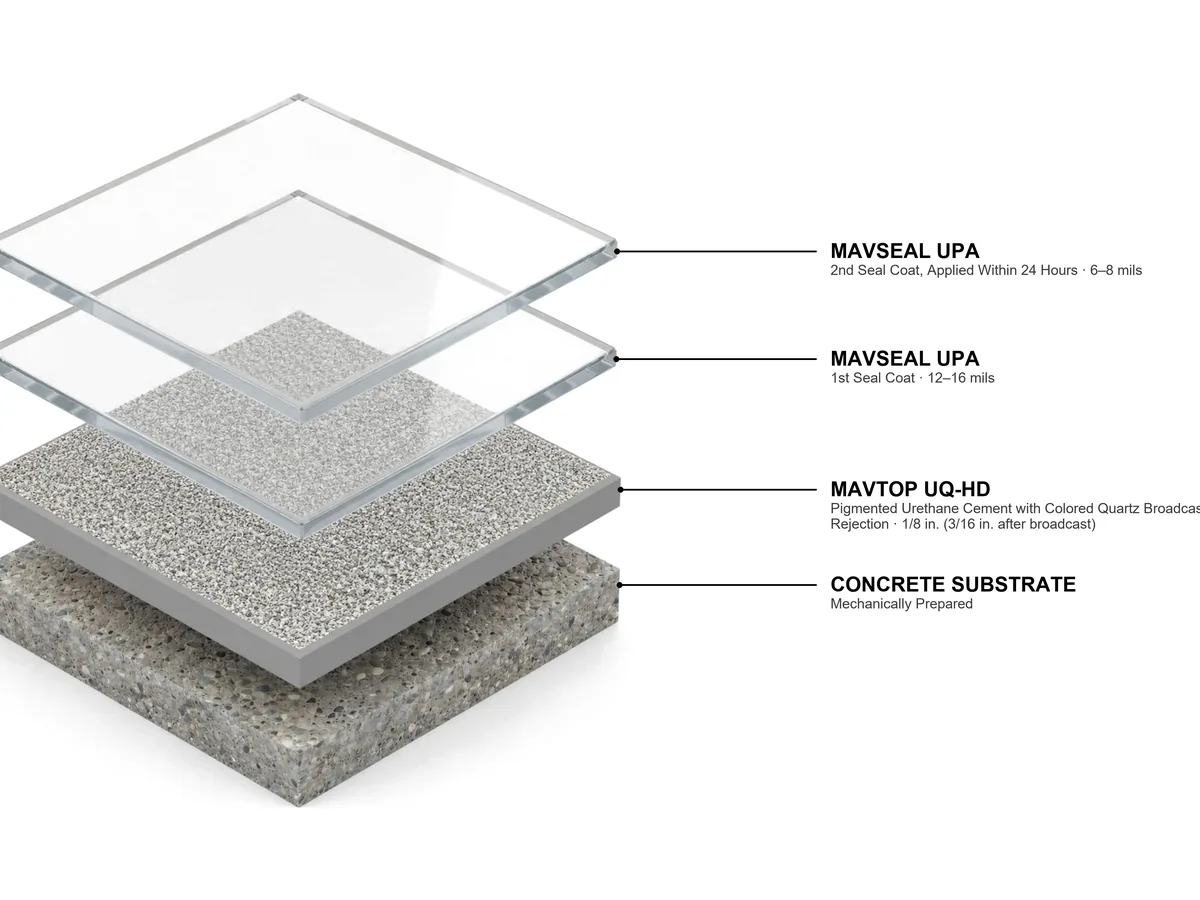

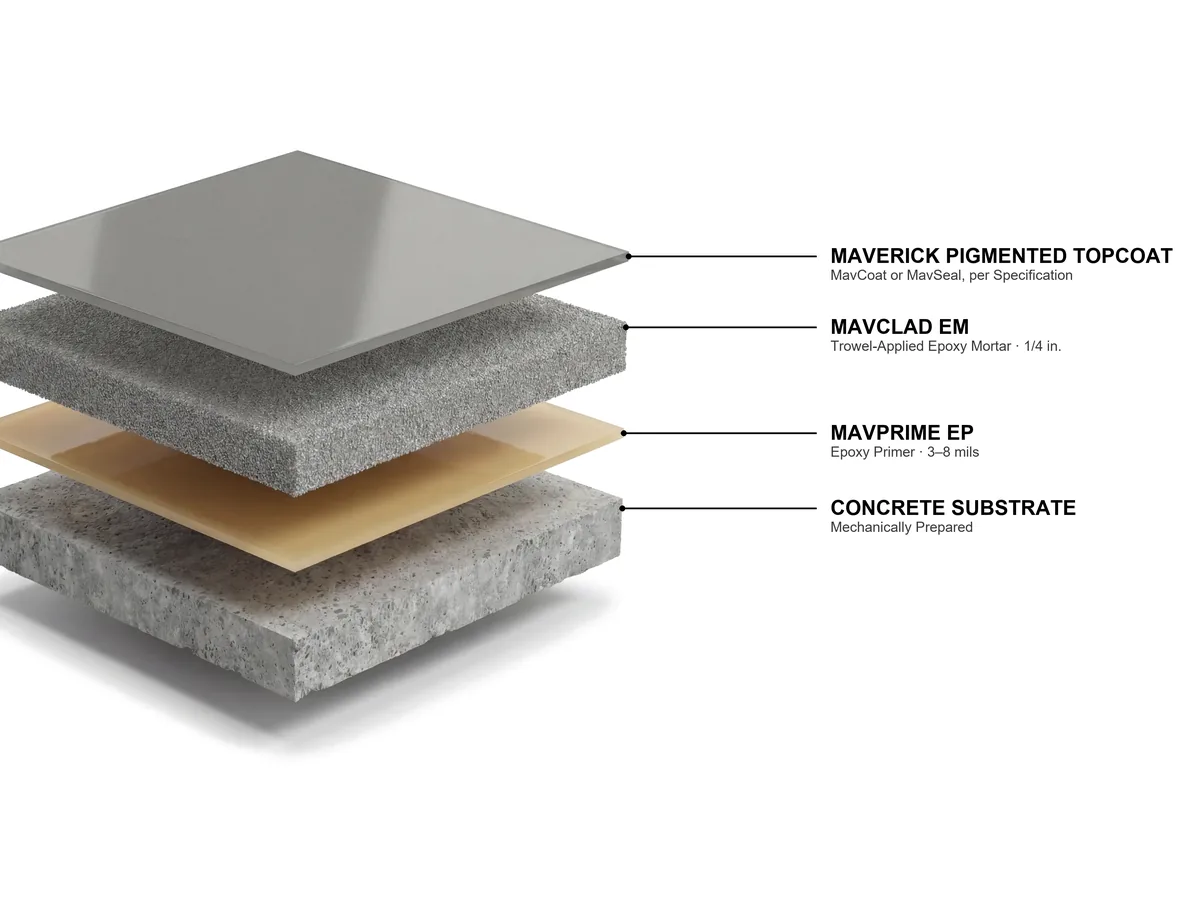

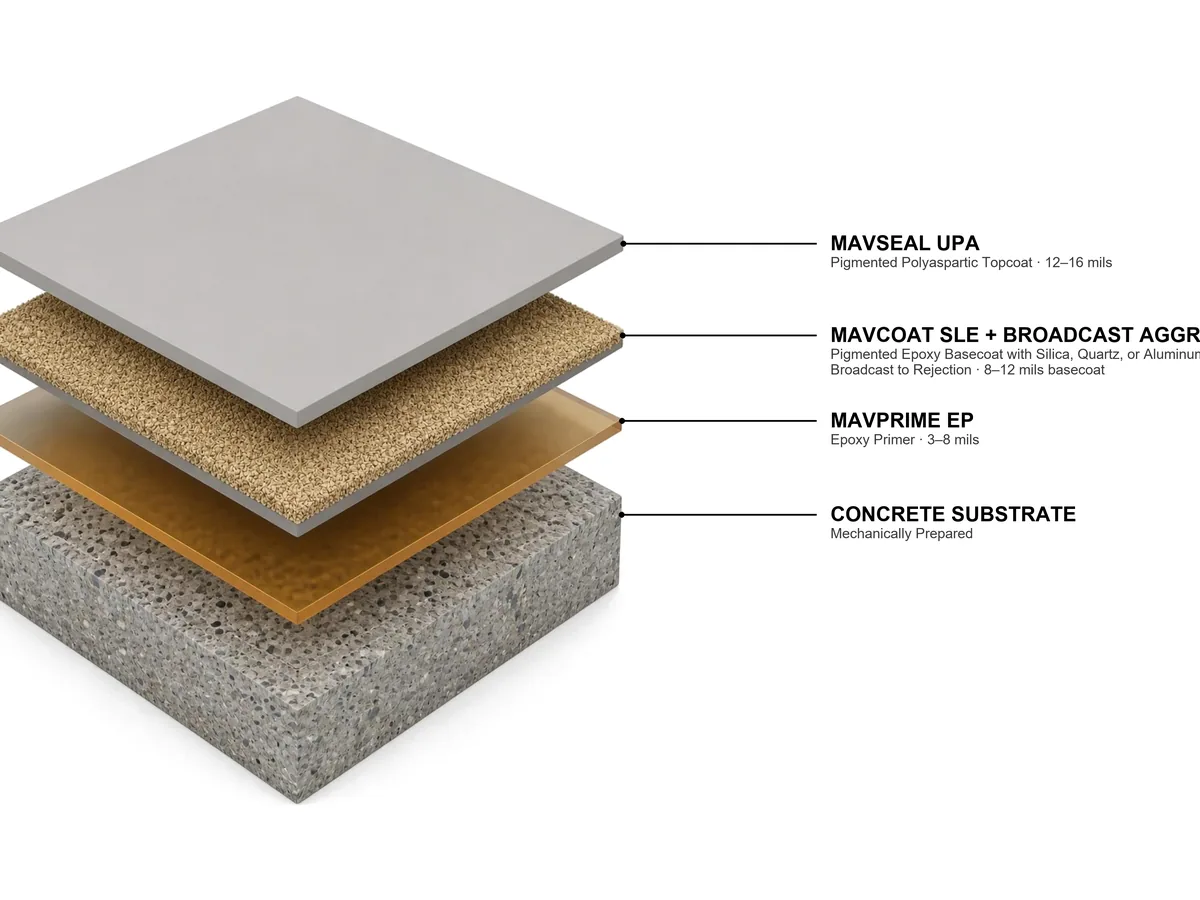

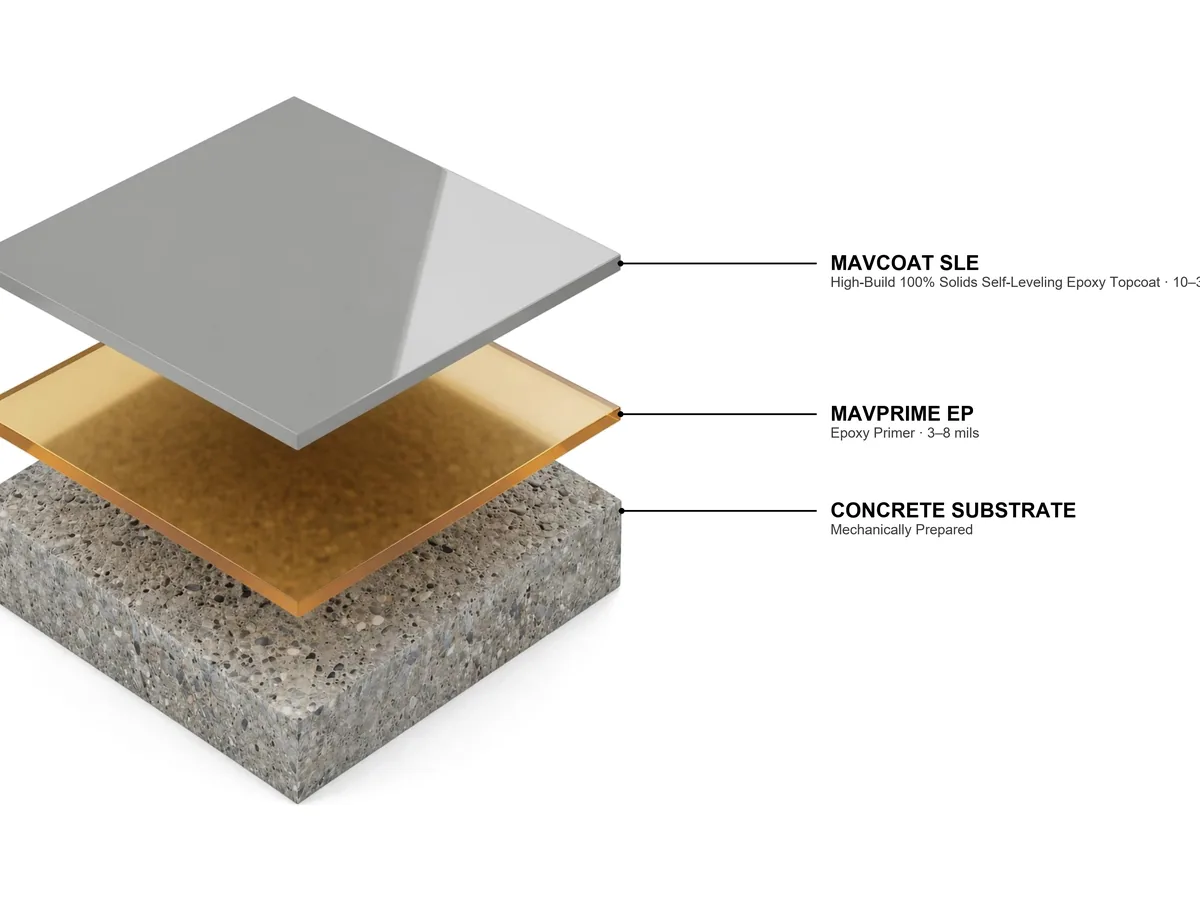

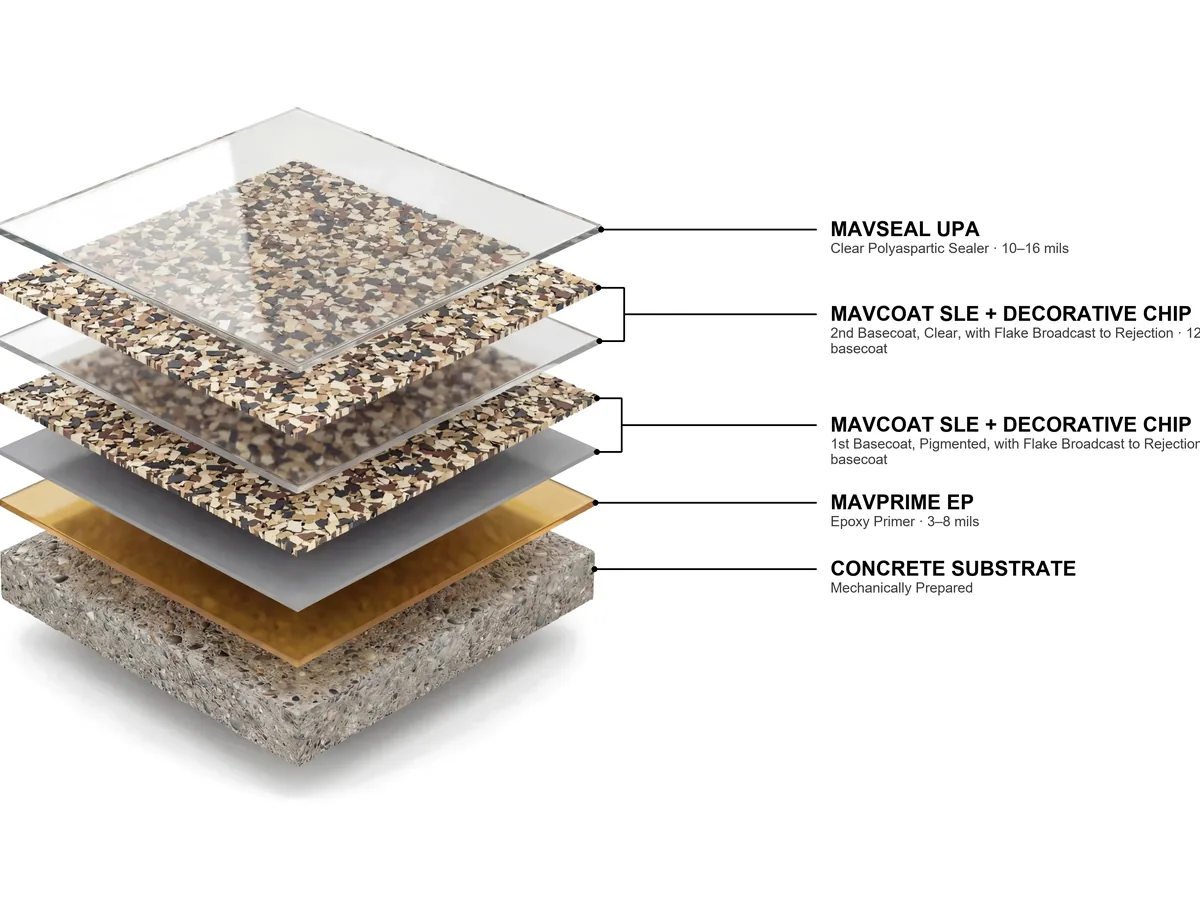

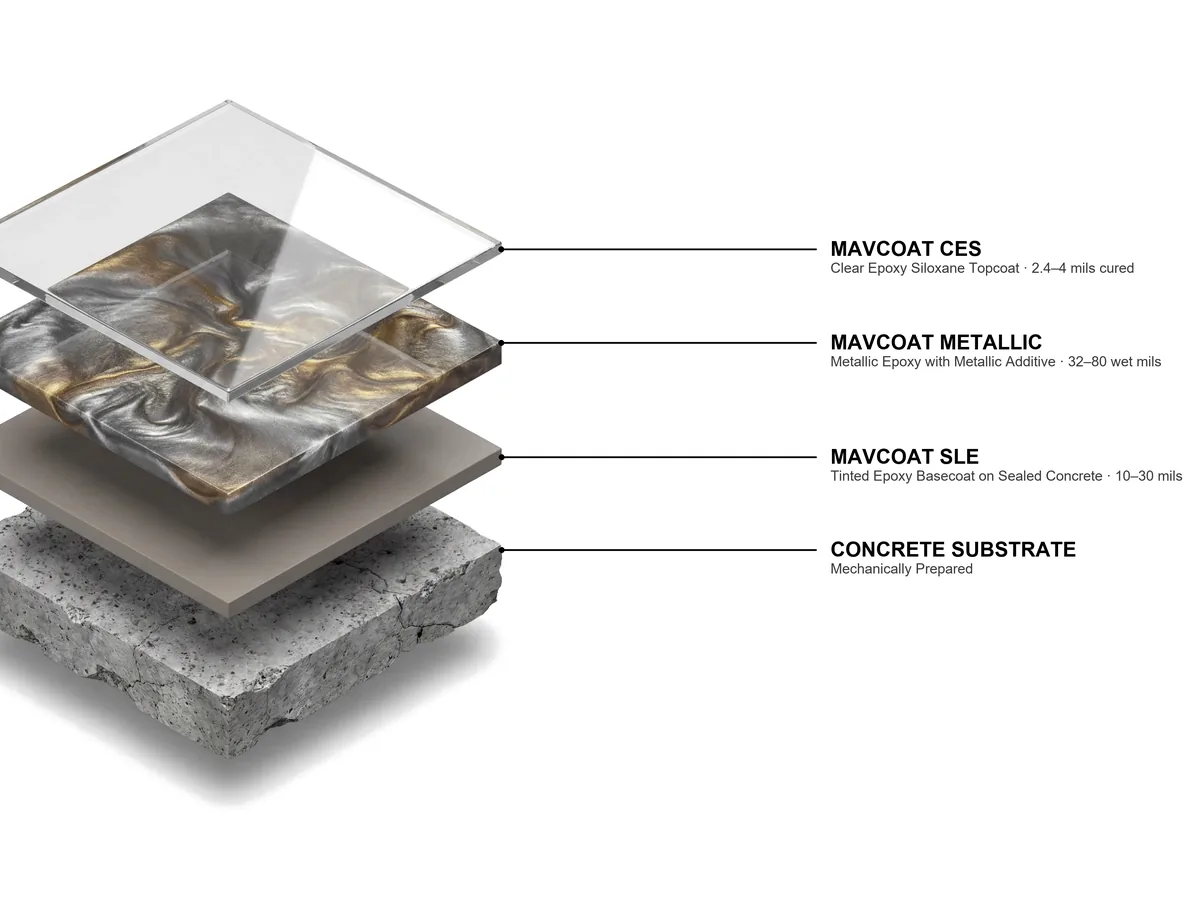

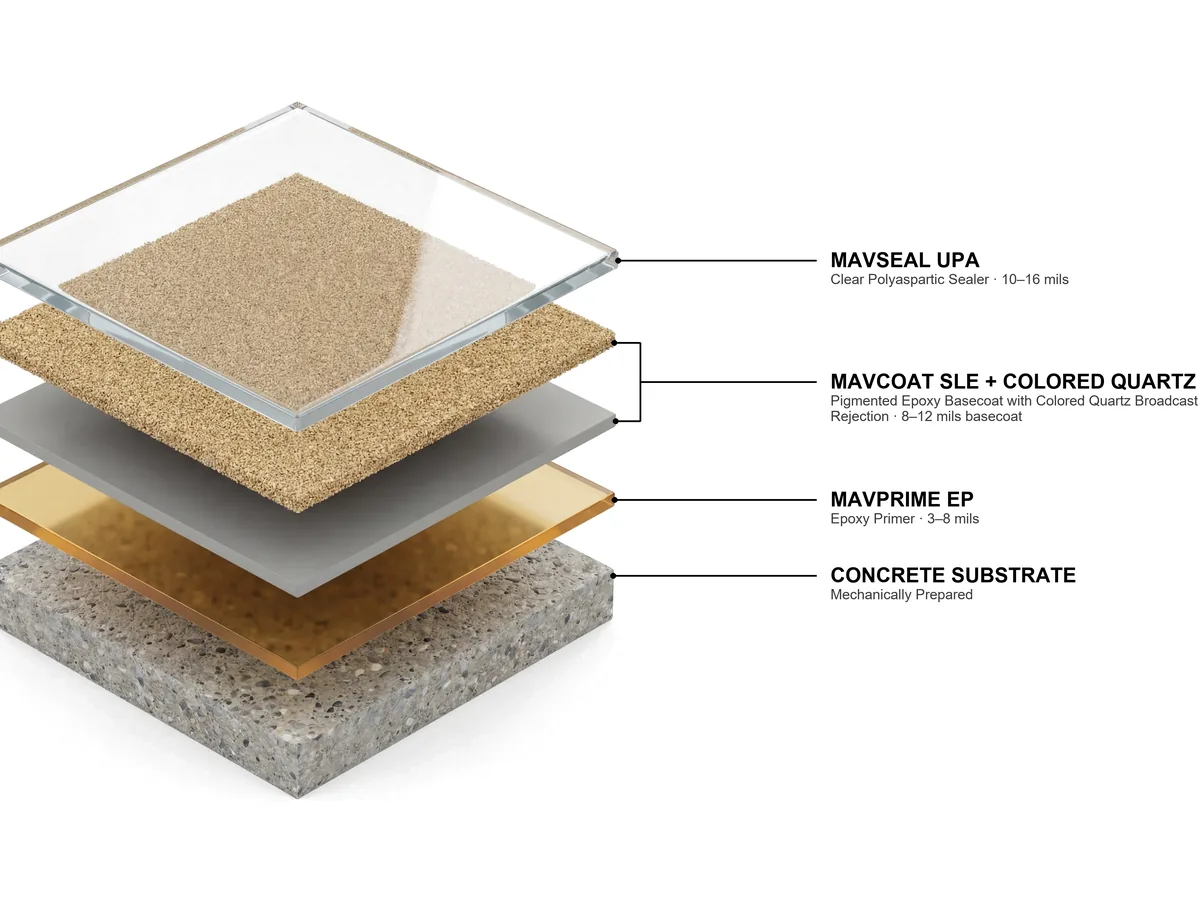

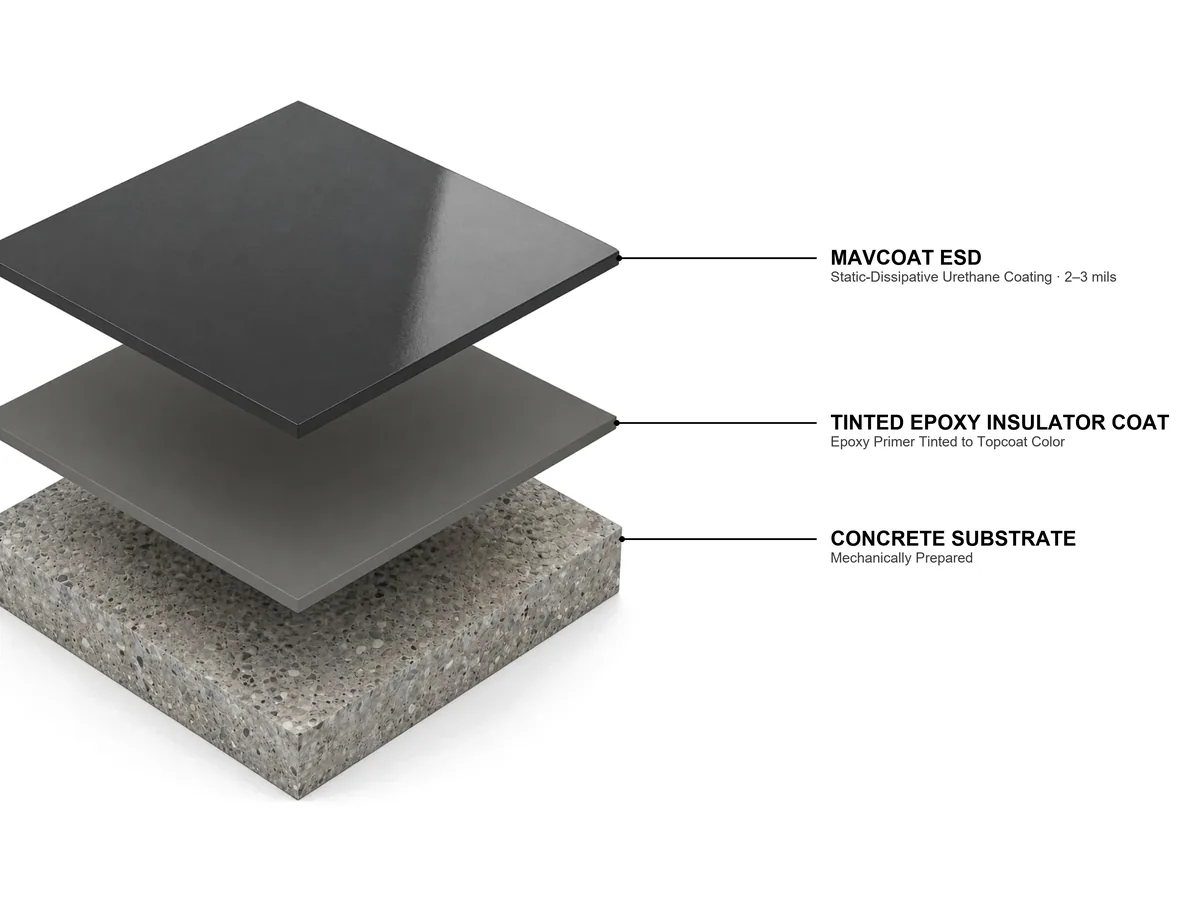

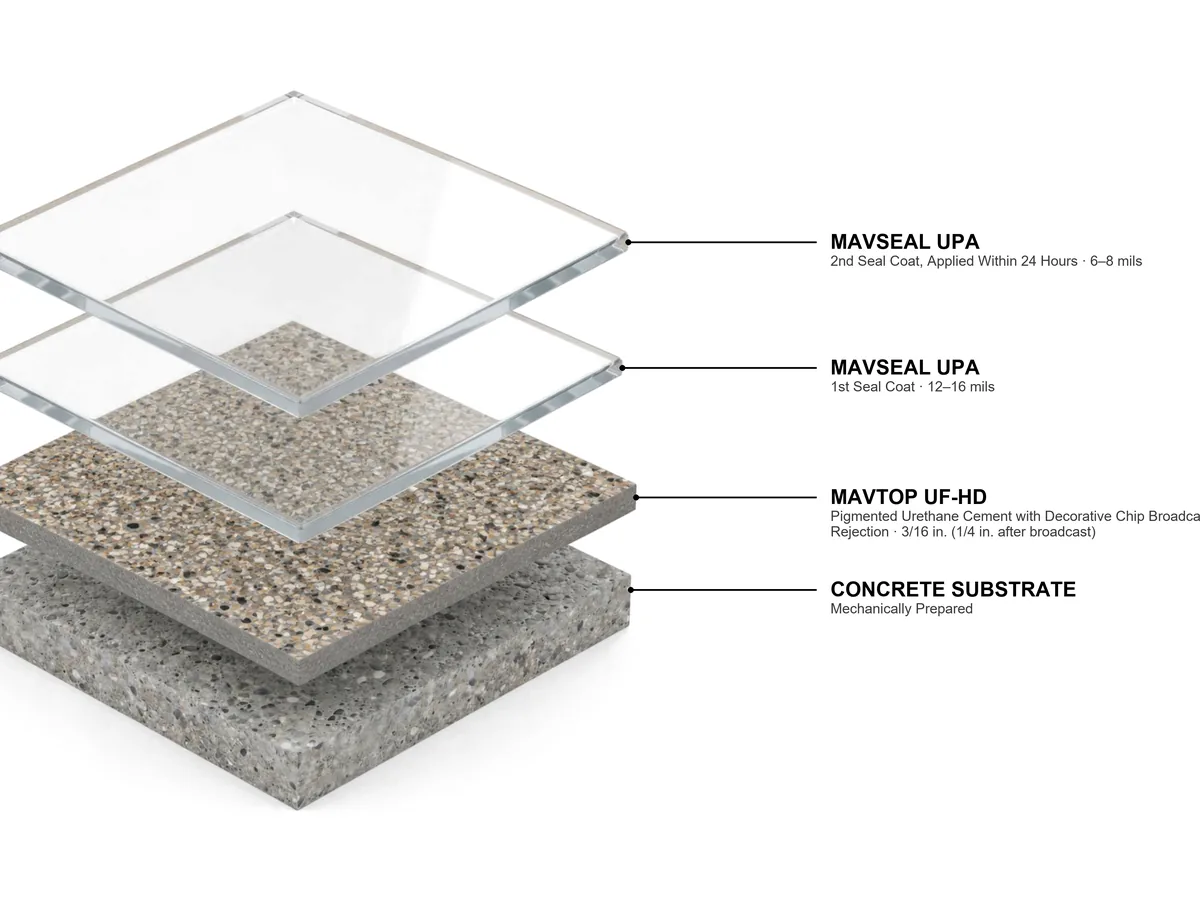

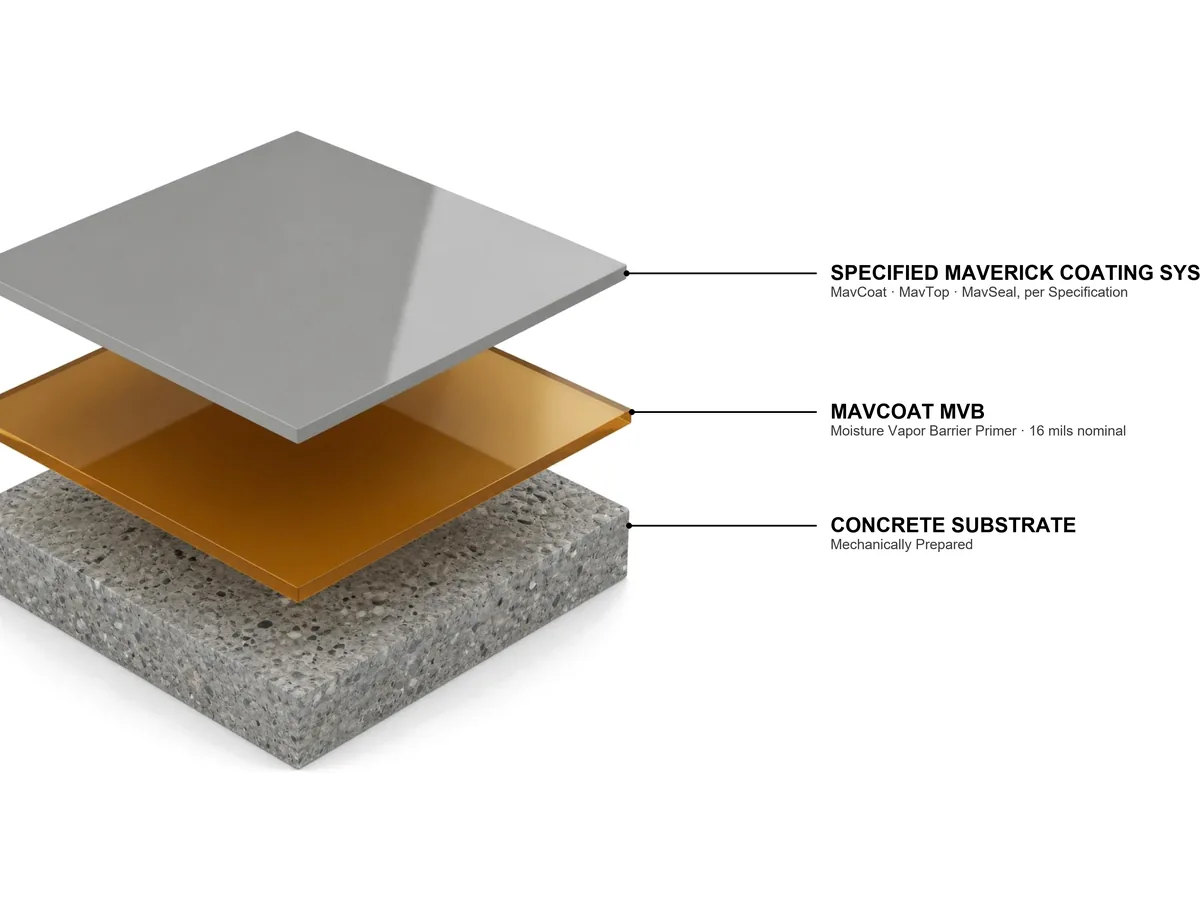

Formal isometric build-up drawings for 18 standard Maverick floor systems — every layer from prepared substrate to finished topcoat, drawn and labeled. Need a different combination? The interactive System Builder generates a custom shop drawing in seconds. These are final-issue PDFs, ready for submittals and construction documents. No request needed; download directly.

Standard Detail Library

Browse by System and Condition

Details are organized by flooring system, then by condition — cove base, drains and trenches, terminations and joints, wall and curb, and miscellaneous penetrations. Search by detail code or title, or filter to the exact condition you're drawing. Don't see your condition? Our technical team drafts project-specific details on request.

How It Works

Built for Specifiers

Download in Seconds

Every detail carries a unique MAV code and downloads as a PDF directly from its row — no login, no form. Need a variation for your project? Send the code and our technical team responds within 48 hours.

Dimensioned PDF Details

Details are issued as dimensioned PDFs, sized and ready to drop straight into your drawing set. Every one reflects the current revision — nothing stale, nothing superseded.

Project-Specific Conditions

If your condition isn't in the library, our technical team drafts it for your project — typically within 48 hours. Pair any detail with the matching CSI 3-part specification.

Use of these drawings. Maverick standard details and shop drawings are provided at no charge to architects, engineers, and specifiers for use in designing and specifying Maverick flooring systems. The drawings remain the property of Maverick Performance Solutions. Each detail reflects the current revision at time of issue — confirm the final build-up with a Maverick engineer before it goes into a construction set.

Need a Detail We Haven't Drawn?

Send us the condition. Our technical team will return a dimensioned, project-ready detail — and the specification language to go with it — within 48 hours.
