Chemical Facility Flooring Systems
Acids, caustics, solvents, and the containment regulations that come with them. Maverick builds chemically resistant floors and secondary containment that hold what the process side spills — indoors and out.
Where Chemistry Meets Concrete
Chemical exposure is not one condition — concentration, temperature, and dwell time decide the system. We match resin chemistry to your exposure schedule, zone by zone.
Chemical facility flooring pairs chemically resistant resin floors with secondary containment: ¼″ troweled mortar for process areas, lined containment areas, sumps, and berms engineered for the stored chemistry, and exterior-rated builds for tank farms. Detailing concentrates at the corners and terminations — the places where containment fails.
Secondary Containment
Troweled mortar and membrane systems lining containment areas, sumps, and berms — engineered for the stored chemistry and inspection regime.
Process Floors
¼″ troweled mortar systems standing up to spills, washdown, and mechanical abuse between turnarounds.
Pump Pads & Equipment Bases
Rebuilt, sloped, and coated — including positive-side waterproofing where pads sit over occupied or sensitive space.
Trenches & Sumps
Lined and detailed to drain — the corners and terminations are where containment fails, so that is where our detailing starts.
Tank Farms
Exterior-rated builds tolerating thermal cycling, UV, and the forklift traffic that services the tanks.
Loading & Transfer Areas
Impact- and abrasion-resistant surfaces where drums, totes, and trucks move all shift.
| Zone | Primary Exposure | Typical Starting Point | Nominal Thickness |
|---|---|---|---|
| Secondary Containment | Stored chemistry; inspection regime | Troweled mortar and membrane lining systems | — |
| Process Floors | Spills, washdown, mechanical abuse between turnarounds | MavClad EM epoxy mortar; MavCrete urethane cement for thermal shock and organic acid service | ¼″ |
| Pump Pads & Equipment Bases | Pads over occupied or sensitive space | Rebuilt, sloped, and coated — repair line plus positive-side waterproofing | — |
| Trenches & Sumps | Drainage; corner and termination detailing | Lined and detailed to drain | — |
| Tank Farms | Thermal cycling, UV, forklift traffic | Exterior-rated builds | — |
| Loading & Transfer Areas | Drum, tote, and truck traffic all shift | Impact- and abrasion-resistant surfaces | — |
Starting points, not prescriptions. Every Maverick system is engineered to the condition of the substrate, the abuse it takes, and the facility’s history with previous floors — the build changes from room to room and plant to plant. Only new construction over bare concrete comes close to a standard build.
The Systems This Work Demands
MavClad EM Epoxy Mortar
¼″ troweled, chemically resistant — the heavy-duty body for process floors.
Explore the SystemMavCrete Urethane Cement
Thermal shock and organic acid service — washdown-rated mortar systems.
Explore the SystemRepair & Slope Restoration
MavPatch, MavRapidPatch, and MavGrout USP — the substrate rebuilt before the system goes down.
Explore the SystemContainment Work, Photographed On Site

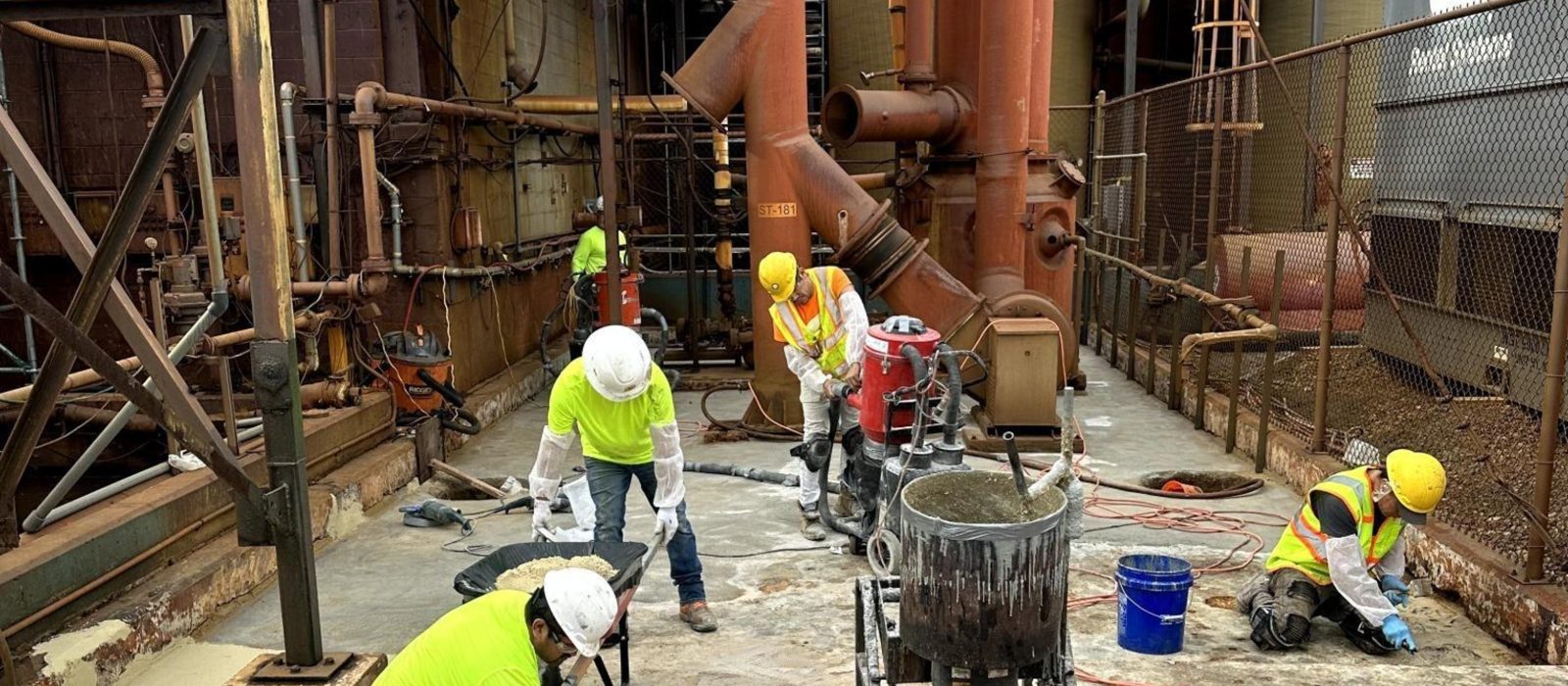

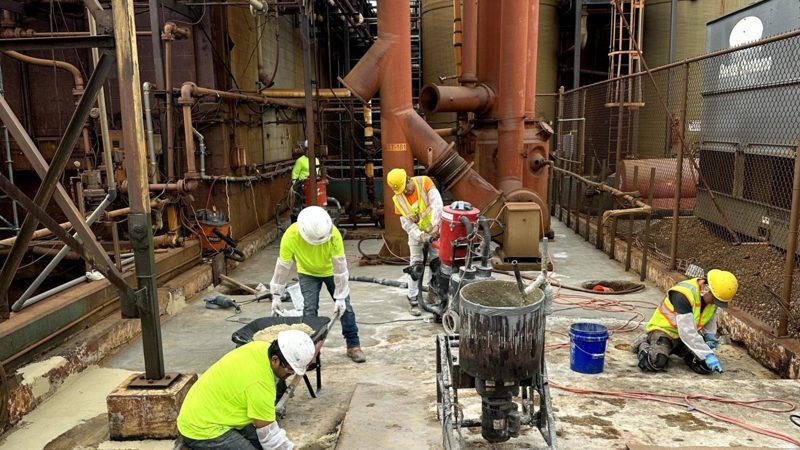

Our crew rebuilding and lining secondary containment in an operating chemical plant — prep, repair, and system installation around live process equipment.

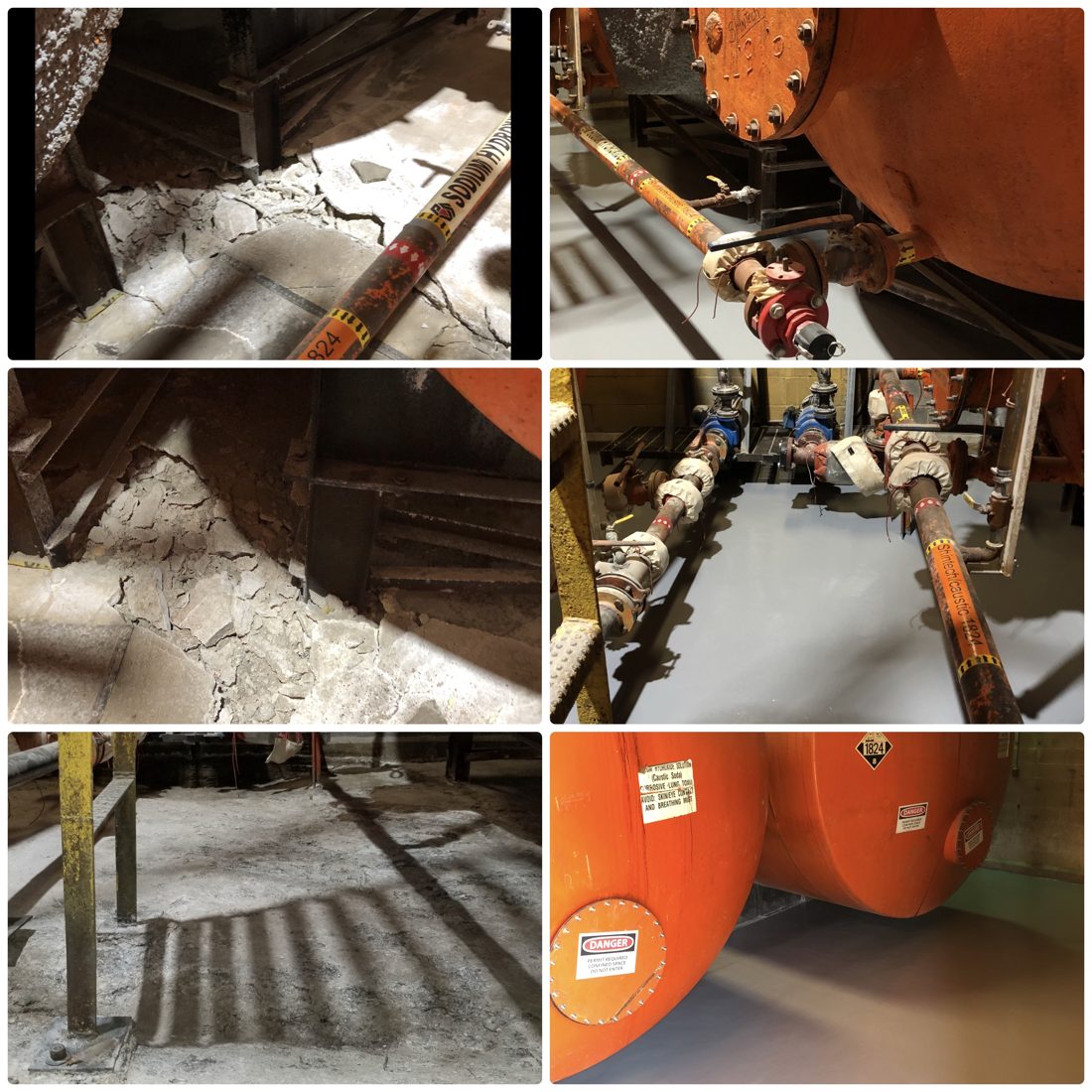

Secondary containment — rebuilt and lined around live process equipment
Specify It Once, Correctly
The Architect Center carries the full standard detail library, isometric system shop drawings, and CSI 3-part specifications under Section 09 67 23 Resinous Flooring.
Planning This Work?
Shutdown windows, phasing, occupied facilities — bring us the constraint and we will engineer the floor around it.
